estimateNetworkOutputBounds

Estimate output bounds of deep learning network

Since R2022b

collapse all in page

    Syntax

    [YLower,YUpper] = estimateNetworkOutputBounds(net,XLower,XUpper)

    Description

    example

    [YLower,YUpper] = estimateNetworkOutputBounds(net,XLower,XUpper) estimates the lower and upper output bounds, YLower and YUpper, respectively, of the network net for input within the bounds specified by XLower and XUpper.

    The function estimates the range of output values that the network returns when the input is between the specified lower and upper bounds. Use this function to estimate how sensitive the network predictions are to input perturbation.

    The estimateNetworkOutputBounds function requires the Deep Learning Toolbox Verification Library support package. If this support package is not installed, use the Add-On Explorer. To open the Add-On Explorer, go to the MATLAB® Toolstrip and click Add-Ons > Get Add-Ons.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Estimate the output bounds for an image regression network.

    Load a pretrained regression network. This network is a dlnetwork object that has been trained to predict the rotation angle of images of handwritten digits.

    load("digitsRegressionMLPNet.mat");

    Load the test data.

    [XTest,~,TTest] = digitTest4DArrayData;

    Select the first ten images.

    X = XTest(:,:,:,1:10);
T = TTest(1:10);

    Convert the test images to dlarray objects.

    X = dlarray(X,"SSCB");

    Estimate the output bounds for an input perturbation between –0.01 and 0.01 for each pixel. Create lower and upper bounds for the input.

    perturbation = 0.01;
XLower = X - perturbation;
XUpper = X + perturbation;

    Estimate the output bounds for each input.

    [YLower,YUpper] = estimateNetworkOutputBounds(net,XLower,XUpper);

    The output bounds are dlarray objects. To plot the output bounds, first extract the data using extractdata.

    YLower = extractdata(YLower);
YUpper = extractdata(YUpper);

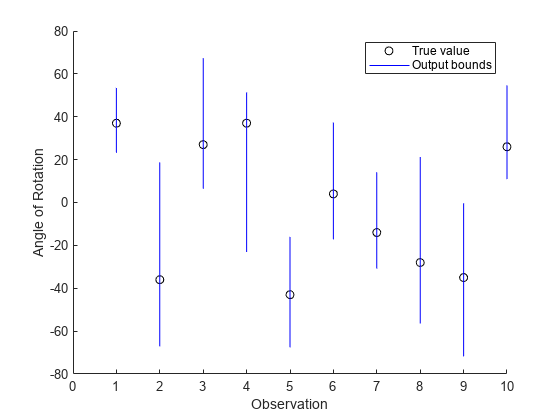

    Visualize the output bounds.

    figure
hold on
for i = 1:10
    plot(i,T(i),"k*")
    line([i i],[YLower(i) YUpper(i)])
end
hold off
xlim([0 10])
xlabel("Observation")
ylabel("Angle of Rotation")
legend(["True value","Output bounds"])

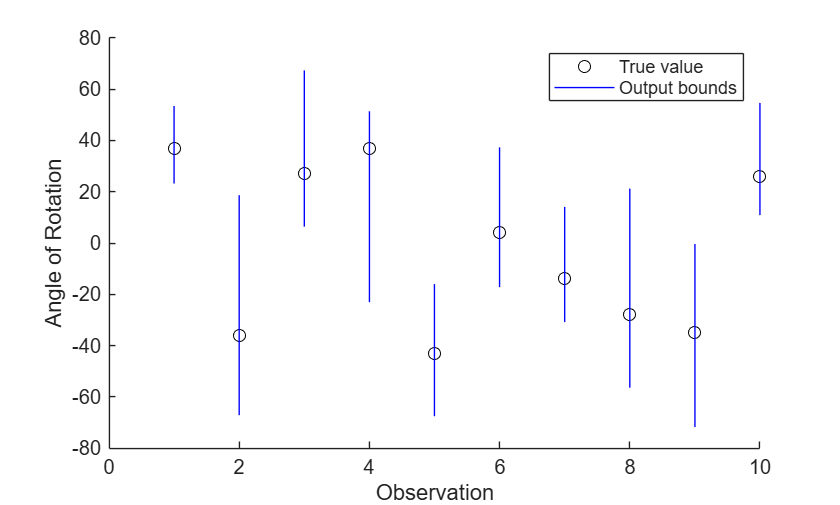

    Input Arguments

    collapse all

    Network, specified as an initialized dlnetwork object. To initialize a dlnetwork object, use the initialize function.

    The function supports networks with these layers:

    The function does not support networks with multiple inputs and multiple outputs.

    The function estimates the output bounds using the final layer in the network. For most applications, use the final fully connected layer when computing the output bounds. If your network has a different layer as its final layer, remove the layer before calling the function.

    Input lower bound, specified as a formatted dlarray object. For more information about dlarray formats, see the fmt input argument of dlarray.

    The lower and upper bounds, XLower and XUpper, must have the same size and format. The function computes the results across the batch ("B") dimension of the input lower and upper bounds.

    Input upper bound, specified as a formatted dlarray object. For more information about dlarray formats, see the fmt input argument of dlarray.

    The lower and upper bounds, XLower and XUpper, must have the same size and format. The function computes the results across the batch ("B") dimension of the input lower and upper bounds.

    Output Arguments

    collapse all

    Output lower bound, returned as a formatted dlarray object. For more information about dlarray formats, see the fmt input argument of dlarray.

    The function estimates the output bounds for each observation across the batch ("B") dimension. If you supply k upper bounds and lower bounds, then YLower contains k output lower bounds. For more information, see Algorithms.

    Output upper bound, returned as a formatted dlarray object. For more information about dlarray formats, see the fmt input argument of dlarray.

    The function estimates the output bounds for each observation across the batch ("B") dimension. If you supply k upper bounds and lower bounds, then YUpper contains k output upper bounds. For more information, see Algorithms.

    Algorithms

    Let X be the input for which you want to estimate the output bounds. To use the estimateNetworkOutputBounds function, you must specify a lower and upper bound for the input. For example, let ϵ be a small perturbation. You can define a lower and upper bound for the input as Xlower=X−ϵ and Xupper=X+ϵ, respectively.

    To estimate the output bounds for the network net and the input bounds Xlower and Xupper, the function performs these steps.

    1. Create an input set using the lower and upper input bounds.

    2. Pass the input set through the network and return an output set. To reduce computational overhead, the function performs abstract interpretation by approximating the output of each layer using the DeepPoly [2] method.

    3. Return the minimum and maximum estimated output values for the input set.

    If you specify multiple pairs of input lower and upper bounds, then the function estimates the output bounds for each pair of input bounds.

    Note

    Because of floating-point round-off error, the output bounds might be slightly different when working with networks produced using C/C++ code generation.

    References

    [1] Goodfellow, Ian J., Jonathon Shlens, and Christian Szegedy. “Explaining and Harnessing Adversarial Examples.” Preprint, submitted March 20, 2015. https://arxiv.org/abs/1412.6572.

    [2] Singh, Gagandeep, Timon Gehr, Markus Püschel, and Martin Vechev. “An Abstract Domain for Certifying Neural Networks”. Proceedings of the ACM on Programming Languages 3, no. POPL (January 2, 2019): 1–30. https://doi.org/10.1145/3290354.
