Build Interactive Tools

Use interactive image display and exploration tools with images displayed in a figure window, and create custom image processing apps from modular building blocks

You can use modular interactive tools independently or in combination to create custom image processing apps. For example, you can create apps that display pixel and image information, enable magnification and navigation aids, and modify images by cropping or adjusting image contrast.

To help you create tools that integrate well with the existing modular interactive tools, the toolbox includes many utility functions that perform commonly needed tasks. For example, the utility functions can add callback functions that perform actions in response to movements of the mouse and align figure windows in relation to a fixed window. You can also get information about image properties and attributes.

Functions

expand all

Interactive Tools for Image Display and Exploration

`imageinfo`	Image Information tool
`imcolormaptool`	Choose Colormap tool
`imcontrast`	Adjust Contrast tool
`imcrop`	Crop image
`imcrop3`	Crop 3-D image
`imdisplayrange`	Display Range tool
`imdistline`	Distance tool
`impixelinfo`	Pixel Information tool
`impixelinfoval`	Pixel Information tool without text label
`impixelregion`	Pixel Region tool
`impixelregionpanel`	Pixel Region tool panel
`immagbox`	Magnification box for image displayed in scroll panel
`imoverview`	Overview tool for image displayed in scroll panel
`imoverviewpanel`	Overview tool panel for image displayed in scroll panel
`imsave`	Save Image Tool
`imscrollpanel`	Scroll panel for interactive image navigation

Get Image Properties

`getimage`	Image data from axes
`imagemodel`	Image model object
`getimagemodel`	Image model object from image object
`imattributes`	Information about image attributes
`imhandles`	Get all image objects

Create Custom Modular Tools

`axes2pix`	Convert axes coordinates to pixel coordinates
`imgca`	Get current axes containing image
`imgcf`	Get current figure containing image
`imgetfile`	Display Open Image dialog box
`imputfile`	Display Save Image dialog box
`iptaddcallback`	Add function handle to callback list
`iptcheckmap`	Check validity of colormap
`iptcheckhandle`	Check validity of handle
`iptgetapi`	Get Application Programmer Interface (API) for handle
`iptGetPointerBehavior`	Retrieve pointer behavior from graphics object
`ipticondir`	Directories containing Image Processing Toolbox and MATLAB icons
`iptPointerManager`	Create pointer manager in figure
`iptremovecallback`	Delete function handle from callback list
`iptSetPointerBehavior`	Store pointer behavior structure in graphics object
`iptwindowalign`	Align figure windows
`makeConstrainToRectFcn`	Create rectangularly bounded drag constraint function
`truesize`	Adjust display size of image

Topics

Interactive Tool Workflow

Learn how to create an interactive tool and how to associate it with a target image.

Interactive Image Viewing and Processing Tools

Interactive tools enable you to get information about image data and perform operations such as contrast adjustment and cropping.

Add Scroll Panel to Figure

When you put an image in a scrollable window, the object hierarchy of the displayed image changes.

Featured Examples

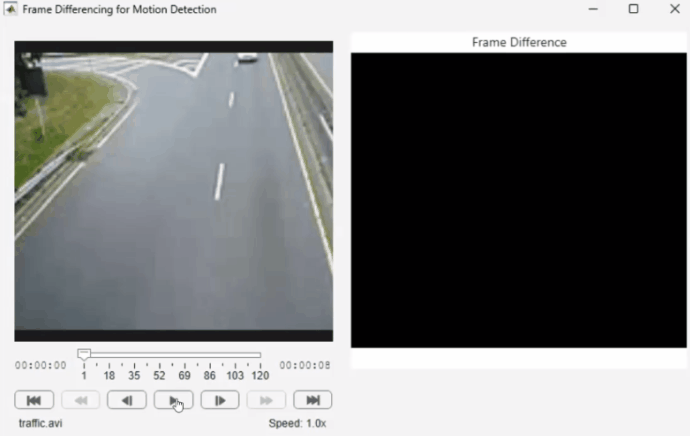

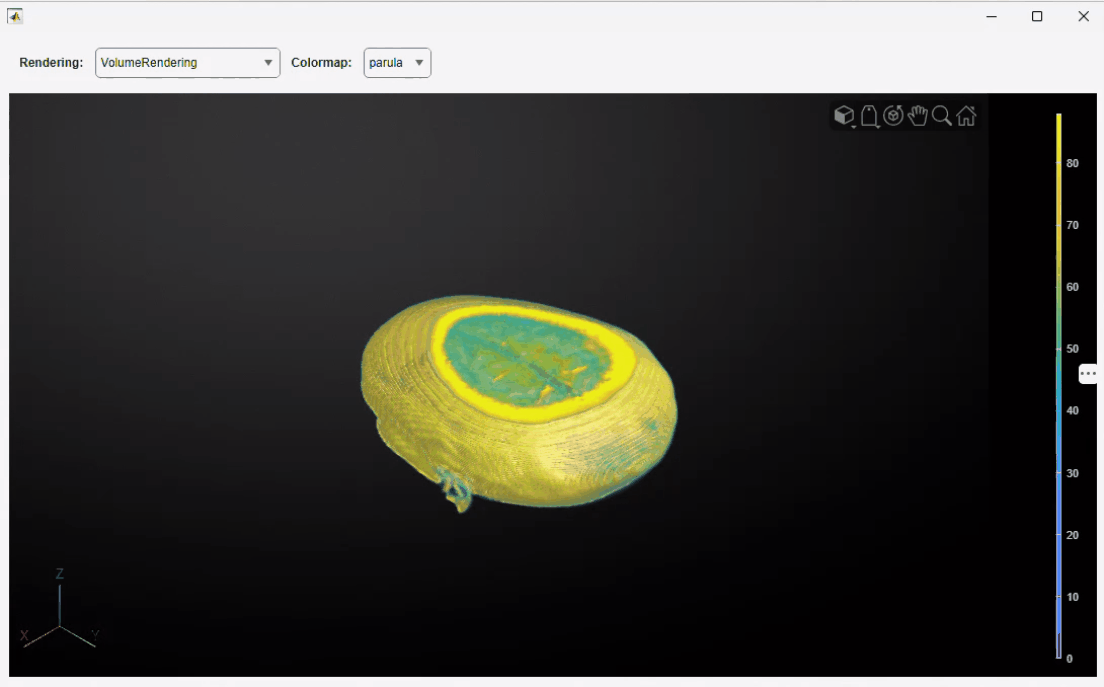

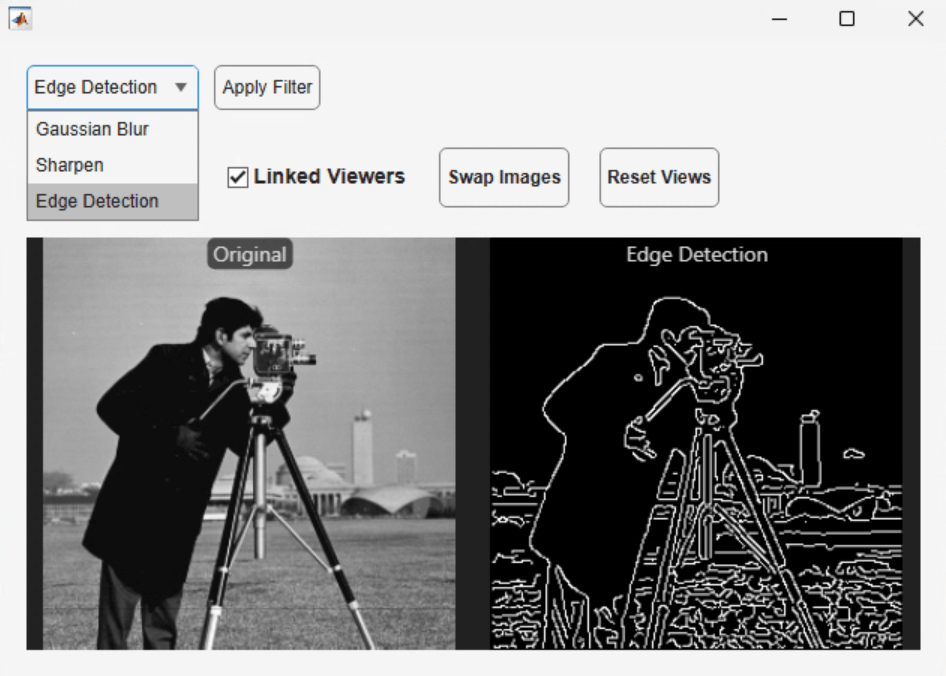

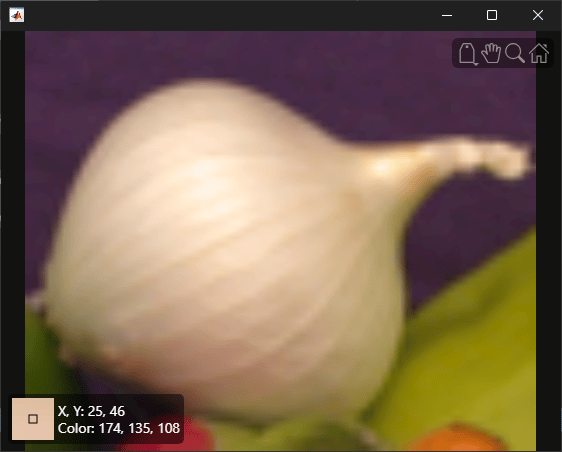

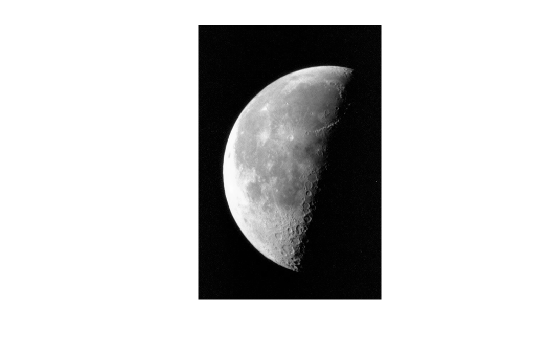

Get Handle to Target Image

Several ways to get the handle to the image displayed in a figure window, referred to as the target image. This can be useful when creating apps with the modular interactive tools.

Open Live Script
