# stftmag2sig

Signal reconstruction from STFT magnitude

## Syntax

## Description

returns a reconstructed time-domain real signal, `x`

= stftmag2sig(`s`

,`nfft`

)`x`

, estimated from
the Short-Time Fourier Transform (STFT) magnitude,
`s`

, based on the Griffin-Lim algorithm. The function assumes
`s`

was computed using discrete Fourier transform (DFT) length
`nfft`

.

specifies additional options using name-value pair arguments. Options include, among
others, the FFT window and the method to specify initial phases. These arguments can be
added to any of the previous input syntaxes. For example,
`x`

= stftmag2sig(___,`Name,Value`

)`'FrequencyRange','onesided','InitializePhaseMethod','random'`

specifies that the signal is reconstructed from a one-sided STFT with random initial
phases.

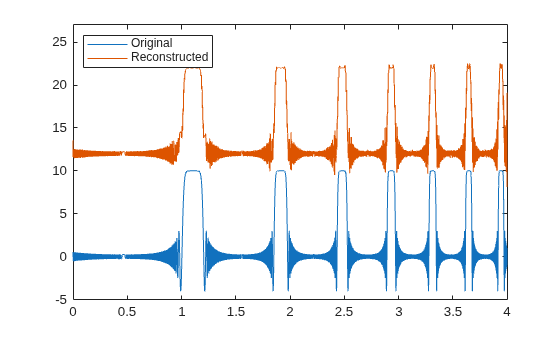

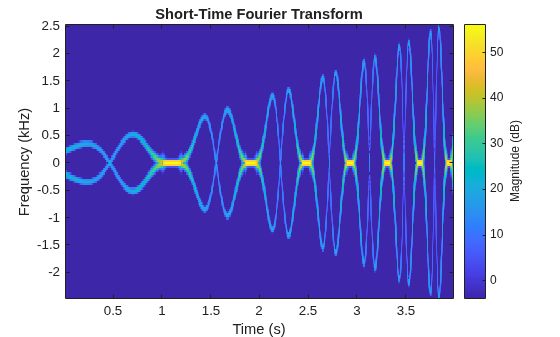

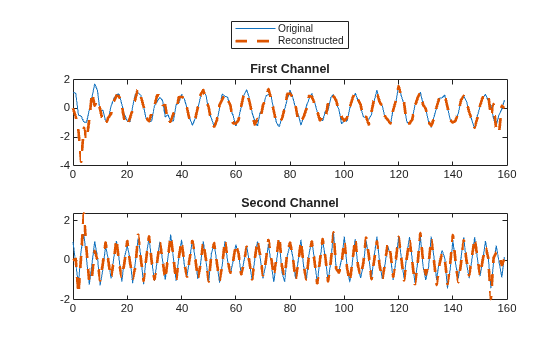

## Examples

### Reconstruct Sinusoid from STFT Magnitude

Consider 512 samples of a sinusoid with a normalized frequency of $\pi /60$ rad/sample and a DC value of 1. Compute the STFT of the signal.

n = 512; x = cos(pi/60*(0:n-1)')+1; S = stft(x);

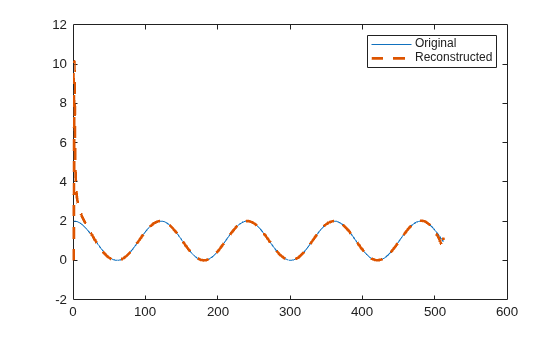

Reconstruct the sinusoid from the magnitude of the STFT. Plot the original and reconstructed signals.

xr = stftmag2sig(abs(S),size(S,1)); plot(x) hold on plot(xr,'--','LineWidth',2) hold off legend('Original','Reconstructed')

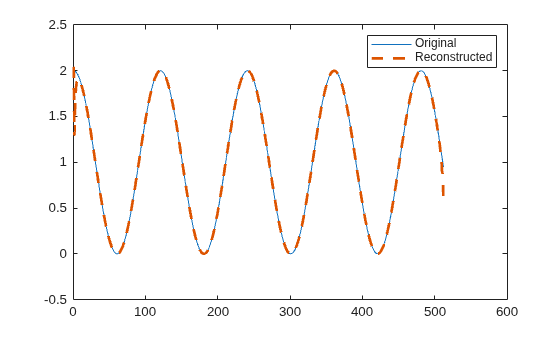

Repeat the computation, but now pad the signal with zeros to decrease edge effects.

xz = circshift([x; zeros(n,1)],n/2); Sz = stft(xz); xr = stftmag2sig(abs(Sz),size(Sz,1)); xz = xz(n/2+(1:n)); xr = xr(n/2+(1:n)); plot(xz) hold on plot(xr,'--','LineWidth',2) hold off legend('Original','Reconstructed')

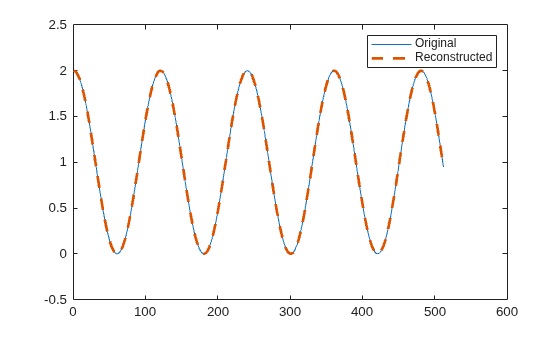

Repeat the computation, but now decrease edge effects by assuming that `x`

is a segment of a signal twice as long.

xx = cos(pi/60*(-n/2:n/2+n-1)')+1; Sx = stft(xx); xr = stftmag2sig(abs(Sx),size(Sx,1)); xx = xx(n/2+(1:n)); xr = xr(n/2+(1:n)); plot(xx) hold on plot(xr,'--','LineWidth',2) hold off legend('Original','Reconstructed')

### Reconstruct Audio Signal from STFT Magnitude

Load an audio signal that contains two decreasing chirps and a wideband splatter sound. The signal is sampled at 8192 Hz. Plot the STFT of the signal. Divide the waveform into 128-sample segments and window the segments using a Hamming window. Specify 64 samples of overlap between adjoining segments and 1024 FFT points.

load splat ty = (0:length(y)-1)/Fs; % To hear, type sound(y,Fs) wind = hamming(128); olen = 64; nfft = 1024; stft(y,Fs,'Window',wind,'OverlapLength',olen,'FFTLength',nfft)

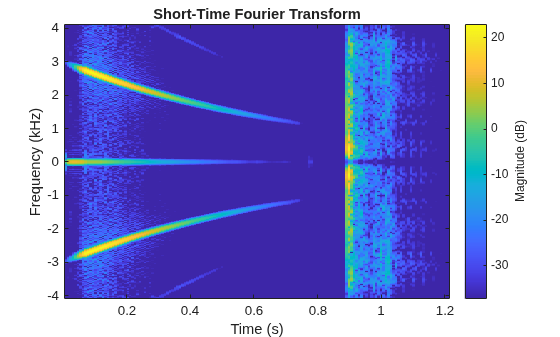

Compute the magnitude and phase of the STFT.

s = stft(y,Fs,'Window',wind,'OverlapLength',olen,'FFTLength',nfft); smag = abs(s); sphs = angle(s);

Reconstruct the signal based on the magnitude of the STFT. Use the same parameters that you used to compute the STFT. By default, `stftmag2sig`

initializes the phases to zero and uses 100 optimization iterations.

[x,tx,info] = stftmag2sig(smag,nfft,Fs,'Window',wind,'OverlapLength',olen); % To hear, type sound(x,Fs)

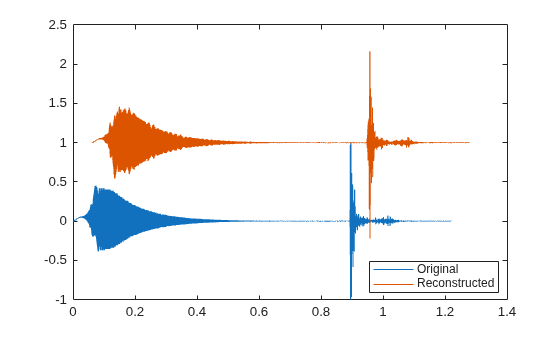

Plot the original and reconstructed signals. For better comparison, offset the reconstructed signal up and to the right.

plot(ty,y,tx+500/Fs,x+1) legend('Original','Reconstructed','Location','best')

Output the relative improvement toward convergence between the last two iterations.

impr = info.Inconsistency

impr = 0.0424

Improve the reconstruction by doubling the number of optimization iterations and setting the initial phases to the actual phases from the STFT. Plot the original and reconstructed signals. For better comparison, plot the negative of the reconstructed signal and offset it up and to the right.

[x,tx,info] = stftmag2sig(smag,nfft,Fs,'Window',wind,'OverlapLength',olen, ... 'MaxIterations',200,'InitialPhase',sphs); % To hear, type sound(x,Fs) plot(ty,y,tx+500/Fs,-x+1) legend('Original','Reconstructed','Location','best')

Output the relative improvement toward convergence between the last two iterations.

impr = info.Inconsistency

impr = 1.3874e-16

## Input Arguments

`s`

— STFT magnitude

matrix

STFT magnitude, specified as a matrix. `s`

must correspond to a
single-channel, real-valued signal.

**Example: **

specifies the STFT magnitude of a sinusoid.`abs`

(`stft`

(`sin`

(pi/2*(0:255)),'FFTLength',128))

**Example: **

specifies the STFT magnitude of a chirp sampled at 1 kHz.`abs`

(`stft`

(`chirp`

(0:1/1e3:1,25,1,50)))

**Data Types: **`single`

| `double`

`nfft`

— Number of DFT points

positive integer scalar

Number of DFT points, specified as a positive integer scalar. This argument is always required.

**Data Types: **`single`

| `double`

`fs`

— Sample rate

2*π* (default) | positive numeric scalar

Sample rate, specified as a positive numeric scalar.

`ts`

— Sample time

`duration`

scalar

Sample time, specified as a `duration`

scalar. Specifying `ts`

is equivalent to
setting a sample rate *f*_{s} =
1/`ts`

.

**Example: **`seconds(1)`

is a `duration`

scalar
representing a 1-second time difference between consecutive signal
samples.

**Data Types: **`duration`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'FrequencyRange','onesided','InitializePhaseMethod','random'`

specifies that the signal is reconstructed from a one-sided STFT with random initial
phases.

`Display`

— Inconsistency display option

`false`

(default) | `true`

Inconsistency display option, specified as the comma-separated pair consisting of
`'Display'`

and a logical value. If this option is set to
`true`

, then `stftmag2sig`

displays the
normalized inconsistency after every 20 optimization iterations, and it also displays
stopping information at the end of the run.

**Data Types: **`logical`

`FrequencyRange`

— Frequency range of STFT magnitude

`'centered'`

(default) | `'twosided'`

| `'onesided'`

Frequency range of STFT magnitude, specified as the comma-separated pair
consisting of `'FrequencyRange'`

and `'centered'`

,
`'twosided'`

, or `'onesided'`

.

`'centered'`

— Treat`s`

as the magnitude of a two-sided, centered STFT. If`nfft`

is even, then`s`

is taken to have been computed over the interval (–*π*,*π*] rad/sample. If`nfft`

is odd, then`s`

is taken to have been computed over the interval (–*π*,*π*) rad/sample. If you specify time information, then the intervals are (–*f*_{s},*f*_{s}/2] cycles/unit time and (–*f*_{s},*f*_{s}/2) cycles/unit time, respectively, where*f*_{s}is the sample rate.`'twosided'`

— Treat`s`

as the magnitude of a two-sided STFT computed over the interval [0, 2*π*) rad/sample. If you specify time information, then the interval is [0,*f*_{s}) cycles/unit time.`'onesided'`

— Treat`s`

as the magnitude of a one-sided STFT. If`nfft`

is even, then`s`

is taken to have been computed over the interval [0,*π*] rad/sample. If`nfft`

is odd, then`s`

is taken to have been computed over the interval [0,*π*) rad/sample. If you specify time information, then the intervals are [0,*f*_{s}/2] cycles/unit time and [0,*f*_{s}/2) cycles/unit time, respectively, where*f*_{s}is the sample rate.

**Data Types: **`char`

| `string`

`InconsistencyTolerance`

— Inconsistency tolerance of reconstruction process

`1e-4`

(default) | positive scalar

Inconsistency tolerance of reconstruction process, specified as the
comma-separated pair consisting of `'InconsistencyTolerance'`

and a
positive scalar. The reconstruction process stops when the Normalized Inconsistency is lower than the
tolerance.

**Data Types: **`single`

| `double`

`InitializePhaseMethod`

— Phase initialization

`'zeros'`

(default) | `'random'`

Phase initialization, specified as the comma-separated pair consisting of
`'InitializePhaseMethod'`

and `'zeros'`

or
`'random'`

. Specify only one of
`'InitializePhaseMethod'`

or `'InitialPhase'`

.

`'zeros'`

— The function initializes the phases as zeros.`'random'`

— The function initializes the phases as random numbers distributed uniformly in the interval [–*π*,*π*].

**Data Types: **`char`

| `string`

`InitialPhase`

— Initial phases

real numeric matrix in the range [–*π*,
*π*]

Initial phases, specified as the comma-separated pair consisting of
`'InitialPhase'`

and a real numeric matrix in the range [–*π*, *π*]. The matrix must have the same size as `s`

.
Specify only one of `'InitializePhaseMethod'`

or
`'InitialPhase'`

.

**Example: **`angle(`

specifies the phases of the short-time Fourier transform of a random
signal.`stft`

(`randn`

(1000,1)))

**Example: **`2*pi*(rand(size(stft(randn(1000,1))))-1/2)`

specifies a
matrix of random phases distributed uniformly in the interval [–*π*, *π*]. The matrix has the same size as the short-time Fourier transform of
a random signal.

.

**Data Types: **`single`

| `double`

`InputTimeDimension`

— Input time dimension

`'acrosscolumns'`

(default) | `'downrows'`

Input time dimension, specified as the comma-separated pair consisting of
`'InputTimeDimension'`

and `'acrosscolumns'`

or
`'downrows'`

.

`'acrosscolumns'`

— The function assumes that the time dimension of`s`

is across the columns and the frequency dimension is down the rows.`'downrows'`

— The function assumes that the time dimension of`s`

is down the rows and the frequency dimension is across the columns.

**Data Types: **`char`

| `string`

`MaxIterations`

— Maximum number of optimization iterations

`100`

(default) | positive integer scalar

Maximum number of optimization iterations, specified as the comma-separated pair
consisting of `'MaxIterations'`

and a positive integer scalar. The
reconstruction process stops when the number of iterations is greater than
`'MaxIterations'`

.

**Data Types: **`single`

| `double`

`Method`

— Signal reconstruction algorithm

`'gla'`

(default) | `'fgla'`

| `'legla'`

Signal reconstruction algorithm, specified as the comma-separated pair consisting
of `'Method'`

and one of these:

**Data Types: **`char`

| `string`

`OverlapLength`

— Number of overlapped samples

`75%`

of window length (default) | nonnegative integer

Number of overlapped samples between adjoining segments, specified as the
comma-separated pair consisting of `'OverlapLength'`

and a positive
integer smaller than the length of `'Window'`

. Successful signal
reconstruction requires `'OverlapLength'`

to match the number of
overlapped segments used to generate the STFT magnitude. If you omit
`'OverlapLength'`

or specify it as empty, it is set to the
largest integer less than or equal to 75% of the window length, which is 96 samples
for the default Hann window.

**Data Types: **`double`

| `single`

`TruncationOrder`

— Truncation order for `'legla'`

update rule

positive integer

Truncation order for `'legla'`

update rule, specified as the
comma-separated pair consisting of `'TruncationOrder'`

and a positive
integer. This argument applies only when `'Method'`

is set to
`'legla'`

and controls the number of phase values updated in each
iteration of that method. If not specified, `'TruncationOrder'`

is
determined using an adaptive algorithm.

**Data Types: **`single`

| `double`

`UpdateParameter`

— Update parameter for fast Griffin-Lim algorithm

`0.99`

(default) | positive scalar

Update parameter for the fast Griffin-Lim algorithm, specified as the
comma-separated pair consisting of `'UpdateParameter'`

and a positive
scalar. This argument applies only when `'Method'`

is set to
`'fgla'`

and specifies the parameter for that method's update
rule.

**Data Types: **`single`

| `double`

**Complex Number Support: **Yes

`Window`

— Spectral window

`hann(128,'periodic')`

(default) | vector

Spectral window, specified as the comma-separated pair consisting of
`'Window'`

and a vector. Successful signal reconstruction requires
`'Window'`

to match the window used to generate the STFT
magnitude. If you do not specify the window or specify it as empty, the function uses
a periodic Hann window of length 128. The length of `'Window'`

must
be greater than or equal to 2.

For a list of available windows, see Windows.

**Example: **`hann(128,'periodic')`

and
`(1-cos(2*pi*(128:-1:1)'/128))/2`

both specify the default window
used by `stftmag2sig`

.

**Data Types: **`double`

| `single`

## Output Arguments

`x`

— Reconstructed time-domain signal

vector

Reconstructed time-domain signal, returned as a vector.

**Note**

If you want `x`

and `s`

to be the same
length, the value of
`(length(`

must be an integer. Use `x`

)-noverlap)/(length(window)-noverlap)`Window`

to specify the length of `window`

and `OverlapLength`

to specify `noverlap`

.

`t`

— Time instants

vector

Time instants at which the signal is reconstructed, returned as a vector.

`info`

— Reconstruction process information

structure

Reconstruction process information, returned as a structure containing these fields:

`ExitFlag`

— Termination flag.A value of

`0`

indicates the algorithm stopped when it reached the maximum number of iterations.A value of

`1`

indicates the algorithm stopped when it met the relative tolerance.

`NumIterations`

— Total number of iterations.`Inconsistency`

— Average relative improvement toward convergence between the last two iterations.`ReconstructedPhase`

— Reconstructed phase at the last iteration.`ReconstructedSTFT`

— Reconstructed short-time Fourier transform at the last iteration.

## More About

### Short-Time Fourier Transform

The short-time Fourier transform (STFT) is used to analyze how the frequency
content of a nonstationary signal changes over time. The magnitude squared of the STFT is
known as the *spectrogram* time-frequency representation of the signal.
For more information about the spectrogram and how to compute it using Signal Processing Toolbox™ functions, see Spectrogram Computation with Signal Processing Toolbox.

The STFT of a signal is computed by sliding an *analysis window*
*g*(*n*) of length *M* over the signal and calculating the
discrete Fourier transform (DFT) of each segment of windowed data. The window hops over the
original signal at intervals of *R* samples, equivalent to *L* = *M* –
*R* samples of overlap between adjoining segments. Most window functions taper
off at the edges to avoid spectral ringing. The DFT of each windowed segment is added to a
complex-valued matrix that contains the magnitude and phase for each point in time and
frequency. The STFT matrix has

$$k=\lfloor \frac{{N}_{x}-L}{M-L}\rfloor $$

columns, where *N _{x}* is the length
of the signal

*x*(

*n*) and the ⌊⌋ symbols denote the floor function. The number of rows in the matrix equals

*N*

_{DFT}, the number of DFT points, for centered and two-sided transforms and an odd number close to

*N*

_{DFT}/2 for one-sided transforms of real-valued signals.

The *m*th column of the STFT matrix $$X(f)=\left[\begin{array}{ccccc}{X}_{1}(f)& {X}_{2}(f)& {X}_{3}(f)& \cdots & {X}_{k}(f)\end{array}\right]$$ contains the DFT of the windowed data centered about time *mR*:

$${X}_{m}(f)={\displaystyle \sum _{n=-\infty}^{\infty}x(n)\text{\hspace{0.17em}}g(n-mR)\text{\hspace{0.17em}}{e}^{-j2\pi fn}}.$$

The short-time Fourier transform is invertible. The inversion process overlap-adds the windowed segments to compensate for the signal attenuation at the window edges. For more information, see Inverse Short-Time Fourier Transform.

The

`istft`

function inverts the STFT of a signal.Under a specific set of circumstances it is possible to achieve "perfect reconstruction" of a signal. For more information, see Perfect Reconstruction.

The

`stftmag2sig`

returns an estimate of a signal reconstructed from the magnitude of its STFT.

### Normalized Inconsistency

The *normalized inconsistency* measures the
improvement toward convergence of the reconstruction process in successive optimization
iterations.

The normalized inconsistency is defined as

$$\text{Inconsistency}=\frac{\Vert \mathrm{STFT}\left(\mathrm{ISTFT}\left({s}_{\text{est}}\right)\right)-{s}_{\text{est}}\Vert}{\Vert {s}_{\text{est}}\Vert},$$

where *s*_{est} is the complex short-time Fourier transform estimated at each iteration,
the brackets denote the matrix norm, STFT denotes the short-time Fourier transform, and ISTFT denotes its inverse. `stftmag2sig`

uses the MATLAB^{®} function `norm`

to compute matrix norms. For more
information about the STFT and its inverse, see Short-Time Fourier Transform and Inverse Short-Time Fourier Transform.

## References

[1] Griffin, Daniel W., and Jae S.
Lim. "Signal Estimation from Modified Short-Time Fourier Transform." *IEEE
Transactions on Acoustics, Speech, and Signal Processing*. Vol. 32, Number 2,
April 1984, pp. 236–243. https://doi.org/10.1109/TASSP.1984.1164317.

[2] Perraudin, Nathanaël, Peter
Balazs, and Peter L. Søndergaard. "A Fast Griffin-Lim Algorithm." In *2013 IEEE
Workshop on Applications of Signal Processing to Audio and Acoustics*, New Paltz,
NY, October 20–23, 2013. https://doi.org/10.1109/WASPAA.2013.6701851.

[3] Le Roux, Jonathan, Hirokazu
Kameoka, Nobutaka Ono, and Shigeki Sagayama. "Fast Signal Reconstruction from Magnitude STFT
Spectrogram Based on Spectrogram Consistency." In *Proceedings of the 13th
International Conference on Digital Audio Effects (DAFx-10)*, Graz, Austria,
September 6–10, 2010.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

`'legla'`

method is not supported.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

## Version History

**Introduced in R2020b**

## Ouvrir l'exemple

Vous possédez une version modifiée de cet exemple. Souhaitez-vous ouvrir cet exemple avec vos modifications ?

## Commande MATLAB

Vous avez cliqué sur un lien qui correspond à cette commande MATLAB :

Pour exécuter la commande, saisissez-la dans la fenêtre de commande de MATLAB. Les navigateurs web ne supportent pas les commandes MATLAB.

# Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
