Détection et correction des erreurs

Codes CRC et codage de blocs et de canaux à convolution

Implémentez la détection et la correction des erreurs en utilisant :

Des techniques de codage CRC (Cyclic Redundancy Check). Des générateurs et détecteurs CRC optimisés pour HDL sont également inclus.
Des techniques de codage de blocs, notamment : codes de blocs linéaires, codes de Hamming, codes BCH (Bose-Chaudhuri-Hocquenghem), codes RS (Reed-Solomon), codes LDPC (Low-Density Parity-Check) et codes TPC (Turbo Product Codes). Des codeurs et décodeurs RS optimisés pour HDL sont également inclus.
Des techniques de codage convolutif, notamment : convolutif, turbo, APP (A Posteriori Probability) et Viterbi. Des décodeurs turbo et Viterbi qui s’exécutent avec les GPU pour augmenter la vitesse de traitement sont également inclus.
Des corps de Galois pour permettre la manipulation des éléments d’ordre pair et impair de corps finis.

Pour en savoir plus sur les codes de contrôle d’erreur, veuillez consulter Error Detection and Correction.

Fonctions

Codes CRC

`crcConfig`	Cyclic redundancy check (CRC) coding configuration (depuis R2024a)
`crcGenerate`	Generate CRC code bits and append them to input data (depuis R2024a)
`crcDetect`	Detect errors in input data using CRC parity bits (depuis R2024a)

Codage de blocs

Codes de blocs linéaires

`cyclgen`	Produce parity-check and generator matrices for cyclic code
`cyclpoly`	Produce generator polynomials for binary cyclic code
`decode`	Block decoder
`encode`	Block encoder
`gfweight`	Calculate minimum distance of linear block code
`gen2par`	Convert between parity-check and generator matrices
`hammgen`	Parity-check and generator matrices for Hamming code
`syndtable`	Produce syndrome decoding table

Codes BCH

`bchenc`	BCH encoder
`bchdec`	BCH decoder
`bchgenpoly`	Produce generator polynomials for BCH code
`bchnumerr`	Number of correctable errors for BCH code

Codes de Reed-Solomon

`rsenc`	Reed-Solomon encoder
`rsdec`	Reed-Solomon decoder
`rsgenpoly`	Generator polynomial of Reed-Solomon code
`rsgenpolycoeffs`	Generator polynomial coefficients of Reed-Solomon code

Codes LDPC

`ldpcEncode`	Encode binary LDPC code (depuis R2021b)
`ldpcDecode`	Decode binary LDPC code (depuis R2021b)
`ldpcEncoderConfig`	Create LDPC encoder configuration (depuis R2021b)
`ldpcDecoderConfig`	Create LDPC decoder configuration (depuis R2021b)
`ldpcQuasiCyclicMatrix`	Parity-check matrix of quasi-cyclic LDPC code (depuis R2021b)
`dvbs2ldpc`	Low-density parity-check (LDPC) codes from DVB-S.2 standard

Codes TPC

`tpcenc`	Turbo product code (TPC) encoder
`tpcdec`	Turbo product code (TPC) decoder

Codage convolutif

`convenc`	Convolutionally encode binary message
`vitdec`	Convolutionally decode binary data by using Viterbi algorithm
`distspec`	Compute distance spectrum of convolutional code
`getTurboIOIndices`	Compute output indices for turbo coding (depuis R2021a)
`iscatastrophic`	True for trellis corresponding to catastrophic convolutional code
`istrellis`	True for valid trellis structure
`oct2dec`	Convert octal to decimal numbers
`poly2trellis`	Convert convolutional code polynomials to trellis description

Corps de Galois

Calculs de corps de Galois — Corps finis d’ordre pair

`convmtx`	Convolution matrix of Galois field vector
`cosets`	Produce cyclotomic cosets for Galois field
`dftmtx`	Discrete Fourier transform matrix in Galois field
`fft`	Fast Fourier transform of Galois field vector
`filter (gf)`	1-D digital filter over Galois field
`gf`	Galois field array
`gftable`	Generate file to accelerate Galois field computations
`ifft`	Inverse fast Fourier transform of Galois field vector
`isprimitive`	True for primitive polynomial for Galois field
`log`	Logarithm in Galois field
`minpol`	Find minimal polynomial of Galois field element
`mldivide`	Solve systems of linear equations Ax = B for x when A is a Galois array
`primpoly`	Find primitive polynomials for Galois field

Corps de Galois de caractéristique impaire — Corps finis d’ordre impair

`gfadd`	Add polynomials over Galois field
`gfconv`	Multiply polynomials over Galois field
`gfcosets`	Produce cyclotomic cosets for Galois field
`gfdeconv`	Divide polynomials over Galois field
`gfdiv`	Divide elements of Galois field
`gffilter`	Filter data using polynomials over prime Galois field
`gflineq`	Find particular solution of `Ax` = `b` over prime Galois field
`gfminpol`	Find minimal polynomial of Galois field element
`gfmul`	Multiply elements of Galois field
`gfpretty`	Polynomial in traditional format
`gfprimck`	Check whether polynomial over Galois field is primitive
`gfprimdf`	Provide default primitive polynomials for Galois field
`gfprimfd`	Find primitive polynomials for Galois field
`gfrank`	Compute rank of matrix over Galois field
`gfrepcov`	Convert one binary polynomial representation to another
`gfroots`	Find roots of polynomial over prime Galois field
`gfsub`	Subtract polynomials over Galois field
`gftrunc`	Minimize length of polynomial representation
`gftuple`	Simplify or convert Galois field element formatting

Objets

développer tout

Codes CRC

`comm.CRCGenerator`	Generate CRC code bits and append to input data
`comm.CRCDetector`	Detect errors in input data using CRC
`comm.HDLCRCGenerator`	Generate CRC code bits and append to input data
`comm.HDLCRCDetector`	Detect errors in input data using CRC

Codage de blocs

Codes BCH

`comm.BCHEncoder`	Encode data using BCH encoder
`comm.BCHDecoder`	Decode data using BCH decoder

Codes de Reed-Solomon

`comm.RSEncoder`	Encode data using Reed-Solomon encoder
`comm.RSDecoder`	Decode data using Reed-Solomon decoder
`comm.HDLRSEncoder`	Encode message using Reed-Solomon encoder
`comm.HDLRSDecoder`	Decode message using Reed-Solomon decoder

Codes LDPC

comm.gpu.LDPCDecoder (To be removed) Decode binary low-density parity-check (LDPC) code with GPU

Codage convolutif

`comm.ConvolutionalEncoder`	Convolutionally encode binary data
`comm.gpu.ConvolutionalEncoder`	Convolutionally encode binary data with GPU
`comm.TurboEncoder`	Encode input signal using turbo encoder parallel concatenated encoding scheme
`comm.APPDecoder`	Decode convolutional code by using APP method
`comm.TurboDecoder`	Decode input signal using turbo decoder parallel concatenated decoding scheme
`comm.gpu.TurboDecoder`	Decode input signal using turbo decoding with GPU
`comm.ViterbiDecoder`	Decode convolutionally encoded data using Viterbi algorithm
`comm.gpu.ViterbiDecoder`	Decode convolutionally encoded data using Viterbi algorithm with GPU

Blocs

développer tout

Codes CRC

General CRC Generator	Generate CRC code bits according to generator polynomial and append to input data frames
General CRC Syndrome Detector	Detect errors in received codeword frames according to generator polynomial
General CRC Generator HDL Optimized	Generate CRC code bits and append them to input data
General CRC Syndrome Detector HDL Optimized	Detect errors in input data using CRC

Codage de blocs

Codes de blocs linéaires

Binary Cyclic Encoder	Create systematic cyclic code from binary vector data
Binary Cyclic Decoder	Decode systematic cyclic code to recover binary vector data
Binary Linear Encoder	Create linear block code from binary vector data
Binary Linear Decoder	Decode linear block code to recover binary vector data
Hamming Encoder	Create Hamming code from binary vector data
Hamming Decoder	Decode Hamming code to recover binary vector data

Codes BCH

BCH Encoder	Create BCH code from binary vector data
BCH Decoder	Decode BCH code to recover binary vector data

Codes de Reed-Solomon

Binary-Input RS Encoder	Create Reed-Solomon code from binary vector data
Binary-Output RS Decoder	Decode Reed-Solomon code to recover binary vector data
Integer-Input RS Encoder	Create Reed-Solomon code from integer vector data
Integer-Output RS Decoder	Decode Reed-Solomon code to recover integer vector data
Integer-Input RS Encoder HDL Optimized	Encode data using a Reed-Solomon (RS) encoder
Integer-Output RS Decoder HDL Optimized	Decode data using Reed-Solomon (RS) decoder

Codes LDPC

LDPC Encoder	Encode binary low-density parity-check (LDPC) code
LDPC Decoder	Decode binary low-density parity-check (LDPC) code

Codes TPC

TPC Encoder	Turbo product code (TPC) encoder
TPC Decoder	Turbo product code (TPC) decoder

Codage convolutif

Convolutional Encoder	Encode binary data using convolutional encoding scheme
Turbo Encoder	Encode binary data using parallel concatenated encoding scheme
APP Decoder	Decode convolutional code using a posteriori probability (APP) method
Turbo Decoder	Decode input signal using parallel concatenated decoding scheme
Viterbi Decoder	Decode convolutionally encoded data using Viterbi algorithm

Rubriques

Error Detection and Correction
Detect errors using cyclic redundancy check (CRC) codes. Learn about various error-control channel coding techniques.
Transmit and Receive Shortened Reed-Solomon Codes
Transmit and receive standard and shortened RS-encoded, 64-QAM-modulated data through an AWGN channel.
Reed-Solomon Coding with Erasures, Punctures, and Shortening in Simulink
Configure Reed-Solomon (RS) codes to perform block coding with erasures, punctures, and shortening.
Creation, Validation, and Testing of User Defined Trellis Structure
Use MATLAB^® to create and validate a user defined trellis structure, then use a unit test bench built in Simulink^® to test the implementation.
Working with Galois Fields
This example shows how to work with Galois fields.
Representation of Polynomials in Communications Toolbox
You can specify polynomials as a character vector or string scalar by using a variety of syntaxes.

Exemples présentés

DVB-S.2 Link, Including LDPC Coding

The application of low density parity check (LDPC) codes in the second generation Digital Video Broadcasting standard (DVB-S.2), which is deployed by DIRECTV in the United States. The example uses communications System objects to simulate a transmitter-receiver chain that includes LDPC encoding and decoding.

Ouvrir le script

DVB-S.2 Link, Including LDPC Coding in Simulink

The state-of-the-art channel coding scheme used in the second generation Digital Video Broadcasting standard (DVB-S.2), which is deployed by DIRECTV in the United States. The coding scheme is based on concatenation of LDPC (Low-Density Parity-Check) and BCH codes. LDPC codes, invented by Gallager in his seminal doctoral thesis in 1960, can achieve extremely low error rates near channel capacity by using a low-complexity iterative decoding algorithm. The outer BCH codes are used to correct sporadic errors made by the LDPC decoder.

Ouvrir le modèle

LDPC Link Simulation Using GPU Processing

Use the ldpcDecode function and gpuArray to increase the speed of a communications system simulation.

Ouvrir le live script

Parallel Concatenated Convolutional Coding: Turbo Codes

Characterize the performance of turbo codes over a noisy channel.

Ouvrir le modèle

Tail-Biting Convolutional Coding

Use the Convolutional Encoder and Viterbi Decoder blocks to simulate a tail-biting convolutional code.

Ouvrir le script

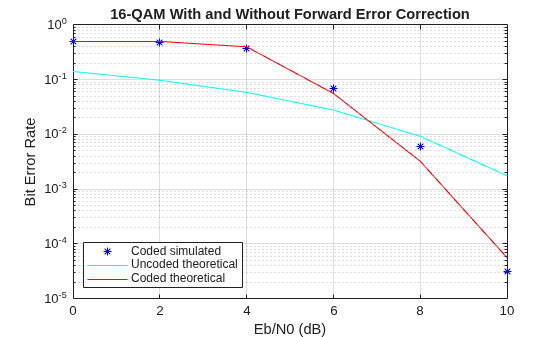

Rate 2/3 Convolutional Code in AWGN

Generate a bit error rate versus Eb/No curve for a link that uses 16-QAM modulation and a rate 2/3 convolutional code in AWGN.

Ouvrir le live script

Punctured Convolutional Coding

Use the convolutional encoder and Viterbi decoder System objects to simulate the bit error rate (BER) of a punctured coding system.

Ouvrir le live script

Estimate BER for Hard and Soft Decision Viterbi Decoding

Estimate bit error rate (BER) performance for hard-decision and soft-decision Viterbi decoders in AWGN. Compare the performance to that of an uncoded 64-QAM link.

Ouvrir le live script

Using GPUs to Accelerate Turbo Coding Bit Error Rate Simulations

Use GPUs to dramatically accelerate bit error rate simulations.

Ouvrir le script

ElGamal Public Key Cryptosystem

Use the Galois field array function, gf, to implement an ElGamal public key cryptosystem.

Ouvrir le live script

5G LDPC Block Error Rate Simulation Using the Cloud or a Cluster

Use the cloud or a cluster for block error rate (BLER) simulation of low-density parity-check (LDPC) coding for the 5G NR downlink shared transport channel (DL-SCH).

Ouvrir le script
