Edge node pairs in pose graph
Identify and Remove Spurious Loop Closures from Pose Graph
This example shows how to identify and remove spurious loop closures from pose graph. To do this, you can modify the relative pose of a loop closure edge and try optimizing the pose graph with and without removing the auto spurious loop closure and compare the results.

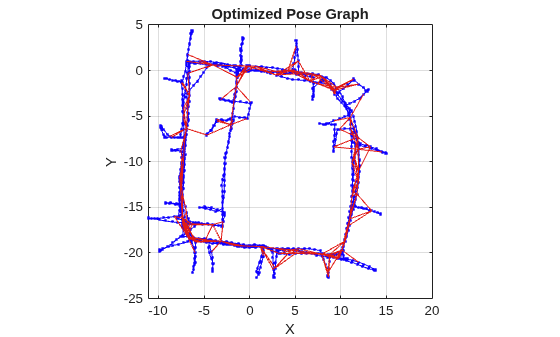

Load the Intel Research Lab Dataset that contains a 2-D pose graph. Optimize the pose graph. Plot the pose graph with IDs off. Red lines indicate loop closures identified in the dataset.
load intel-2d-posegraph.mat pg optimizedPG = optimizePoseGraph(pg); show(optimizedPG,IDs="off"); title("Optimized Pose Graph")
Modify the relative pose of the loop closure edge
1386 to some random values.
loopclosureId = 1386; nodePair = edgeNodePairs(optimizedPG,loopclosureId); [relPose,infoMat] = edgeConstraints(optimizedPG,loopclosureId); relPose(2) = -5; relPose(3) = 1.5; addRelativePose(optimizedPG,relPose,infoMat,nodePair(1),nodePair(2));

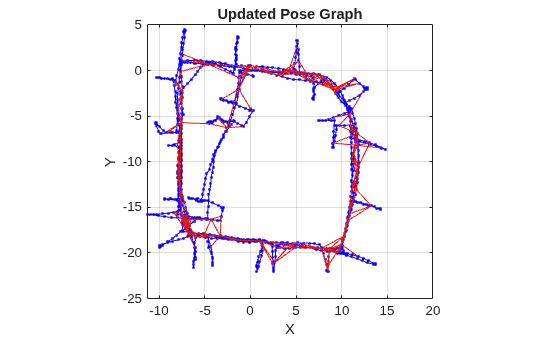

Optimize the pose graph without auto loop closure trimming. Plot the optimized pose graph to see the poor adjustment of the nodes with loop closures.
[updatedPG,solutionInfo] = optimizePoseGraph(optimizedPG); show(updatedPG,IDs="off"); title("Updated Pose Graph")
Certain loop closures should be trimmed from the pose graph. Use the
trimLoopClosures function to trim these bad loop closures. Set the truncation threshold and maximum iterations for the trimmer parameters.
trimParams = struct("TruncationThreshold",0.5,"MaxIterations",100);
Generate solver options.
solverOptions = poseGraphSolverOptions("g2o-levenberg-marquardt");

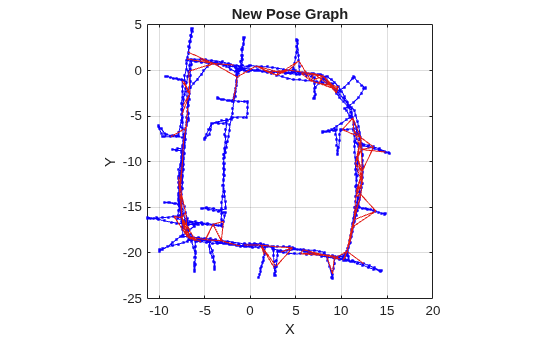

trimLoopClosures function with the trimmer parameters and solver options. Plot the new pose graph to see the bad loop closures were removed.
[newPG,trimInfo] = trimLoopClosures(updatedPG,trimParams,solverOptions); show(newPG,IDs="off"); title("New Pose Graph")
poseGraph — Pose graph
poseGraph object |
Pose graph, specified as a
edgeIDs — Edge IDs
vector of positive integers
Edge IDs, specified as a vector of positive integers.
nodePairs — Edge node pairs in pose graph
Edge node pairs in pose graph, returned as n-by-2 matrix that lists the IDs of the two nodes that each edge connects. Each row is a pair of nodes that form an edge. Multiple edges may exist between the same pair of nodes, so the matrix may contain duplicate entries.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Use this syntax when constructing
poseGraph3D objects for code generation:
poseGraph('MaxNumEdges',maxEdges,'MaxNumNodes',maxNodes) specifies an
upper bound on the number of edges and nodes allowed in the pose graph when
generating code. This limit is only required when generating code.
Version HistoryIntroduced in R2019b
edgeNodePairs was renamed
edgeNodePairs object function was renamed from
edgeNodePairs when calling
