# closestProjections

Find orthogonal projections between path tangent vector and query point

Since R2022a

## Syntax

``[arclengths,distances] = closestProjections(refPath,points)``
``[___,projPoints] = closestProjections(refPath,points)``
``[___] = closestProjections(refPath,points,bestN)``
``[___] = closestProjections(refPath,points,intervals)``
``[___] = closestProjections(refPath,points,intervals,bestN)``

## Description

````[arclengths,distances] = closestProjections(refPath,points)` attempts to project each xy point in the points matrix, onto each clothoid segment contained in the reference path, `refPath`, such that the projection vector is orthogonal to the path tangent-angle. Returns closest orthogonal projection between the curve and query point in each segment as a pair of two cell arrays, `arclengths` and `distances` containing the arclengths and distances respectively.```

example

````[___,projPoints] = closestProjections(refPath,points)` optionally returns the projected points, `projPoints` as a cell array containing path data evaluated at the corresponding arclengths element.```
````[___] = closestProjections(refPath,points,bestN)` returns the nearest projections, `bestN`for each xy point in `points`.```
````[___] = closestProjections(refPath,points,intervals)` accepts an optional matrix of arclengths intervals, `intervals`, where each row contains a lower and upper arclength bounds.```
````[___] = closestProjections(refPath,points,intervals,bestN)` returns up to the nearest projections `bestN` for each xy point in `points`.```

## Examples

collapse all

Create a reference path with multiple intersections.

```leftSideAngles = [linspace(-pi/6,pi/6,4) linspace(pi/6,-pi/6,4)]'; rightSideAngles = [linspace(-pi/6,pi/6,4) linspace(-pi/6,pi/6,4)]'; waypoints = zeros(numel(leftSideAngles)*2,3); width = 10; height = 20; waypoints(1:2:end,:) = [zeros(numel(leftSideAngles),1) linspace(0,height,numel(leftSideAngles))' leftSideAngles]; ... waypoints(2:2:end,:) = [width*ones(numel(leftSideAngles),1) linspace(0,height,numel(leftSideAngles))' rightSideAngles]; refPath = referencePathFrenet(waypoints);```

Create a set of random XY points around the path.

`queryPoints = [width height]/2+(rand(10,2)-.5).*[width height]*1.5;`

Retrieve the nearest valid projection of each query point on each segment in the path.

```[allArclenth,allDistance,allProjection] = closestProjections(refPath,queryPoints); pLength = refPath.PathLength; breaks = [refPath.SegmentParameters(:,end); pLength]; allInterval = [breaks(1:end) [breaks(2:end); pLength]];```

Return the three best projections.

```maxResult = 3; [best3Arclength,best3Distance,best3Projection] = closestProjections(refPath,queryPoints,maxResult);```

Define a custom set of arclength-intervals.

`everyThreeMerged = [breaks(1:3:end-1) [breaks(4:3:end-1); breaks(end)]];`

Find the best projection of each query-point onto each custom interval that exists.

`[allArclengthCustom,allDistanceCustom,allProjectionCustom] = closestProjections(refPath,queryPoints,everyThreeMerged);`

Return the single best projection in the first and last quarter of the path.

```endQuarterIntervals = [0 1/4; 3/4 1]*refPath.PathLength; [bestQuarterArclength,bestQuarterDistance,bestQuarterProjection] = closestProjections(refPath,queryPoints,endQuarterIntervals, 1);```

Display the results.

```% Pack iterable containers intervalSets = {allInterval, allInterval, everyThreeMerged, endQuarterIntervals}; S = {allArclenth best3Arclength allArclengthCustom bestQuarterArclength}; D = {allDistance best3Distance allDistanceCustom bestQuarterDistance}; PP = {allProjection best3Projection allProjectionCustom bestQuarterProjection}; titles = ["All Projections","Best 3, All Segments","Best In Merged Segments","First vs Last Quarter"]; cOrder = colororder;```

Define the helper functions.

```mergeFcn = @(v1,v2)reshape([v1 v2 nan(size(v1,1),size(v2,2))]',[],1); plotFcn = @(L1,L2,linespec)plot(mergeFcn(L1(:,1),L2(:,1:min(1,size(L2,2)))),mergeFcn(L1(:,2),L2(:,2:min(2,size(L2,2)))),linespec{:}); intervalPlotter = @(bounds,nPt,linespec)plotFcn(interpolate(refPath,linspace(bounds(1),bounds(2),nPt)'),[],linespec);```

Create in-loop handles.

```setupFcns = {}; setupFcns{1} = @(figIdx)hold(show(refPath,"Parent",subplot(2,2,figIdx)),"on"); setupFcns{2} = @(figIdx)axis(subplot(2,2,figIdx),"equal"); setupFcns{3} = @(figIdx)title(subplot(2,2,figIdx),titles(figIdx)); setupFcns{4} = @(figIdx)plotFcn(queryPoints,[],{"Xk","MarkerSize",5}); setupFcns{5} = @(figIdx)arrayfun(@(i)intervalPlotter(intervalSets{figIdx}(i,:),100,{"Color",cOrder(mod(i,size(cOrder,1)-1)+1,:),"LineWidth",2'}),1:size(intervalSets{figIdx},1)); setupFcns{6} = @(figIdx)cellfun(@(p,projPts)plotFcn(repmat(queryPoints(p,:),size(projPts,1),1),projPts,{"Color",cOrder(mod(p,size(cOrder,1)-1)+1,:)}),num2cell(1:size(queryPoints,1))',PP{figIdx});```

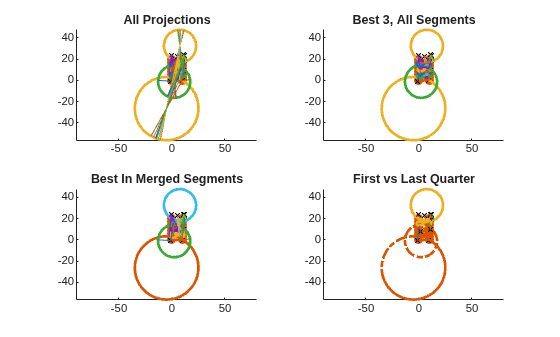

Display the results.

`arrayfun(@(idx)cellfun(@(f)f(idx),setupFcns),1:4)` ## Input Arguments

collapse all

Reference path, specified as a `referencePathFrenet` object.

Global points, specified as a P-by-2 numeric matrix with rows of the form `[x y]`. P is the number of points. Positions are in meters.

Best N projections, specified as a scalar in the range [1,N], where N is the number of segments in the path.

Arclength intervals, specified as a N-by-2 matrix, where each row is of the form [minimum_arclength, maximum_arclength] in meters, and N is the number of segments in the path.

## Output Arguments

collapse all

Arclengths between curve and query points, returned as an M-element cell array, where M is the number of query points in the `points` input. Each cell contains a P-element column vector, where P is in the range [0,N] and N is the number of segments in the path.

Distances between curve and query points, returned as an M-element cell array, where M is the number of query points in the `points` input. Each cell contains a P-element column vector, where P is in the range [0,N] and N is the number of segments in the path.

Projected points, returned as an M-element cell array, where M is the number of query points in the `points` input. Each cell contains a P-by-6 matrix, where P is in the range [0,N] and each row is in the form [x y theta k dk s]. x, y, theta, k, dk, s, are the x and y positions, tangent angle, curvature, change in curvature, at the arclength, s, respectively.

## Version History

Introduced in R2022a
